Safety Signs

Mandatory Instruction

JALITE photoluminescent mandatory fire safety notices are sited to instruct occupants of necessary actions to protect their life safety, according to BS ISO 3864-1:2011. JALITE mandatory fire safety notices such as fire door keep shut and fire action notices allow responsible persons to manage fire risk assessment requirements, by informing occupants, especially visitors of emergency evacuation procedures and practices.

JALITE Fire door safety signs such as fire exit keep clear signs, are sited to allow evacuees to safely escape from the building, especially during an emergency evacuation. JALITE fire door safety signs therefore reduce risks that develop from a blocked fire exit during an incident of fire.

JALITE photoluminescent mandatory safety notices such as our wear mask sign, wear eye protection sign, and fire action notices, are designed with integrated graphical symbols as per BS EN ISO 7010.

JALITE photoluminescent mandatory safety notices are proven to instil familiarity of emergency and health and safety procedures, in all lighting conditions.

Quick overview

Characteristics

BS ISO 17398:2004 - Safety colours and safety signs. Classification performance and durability of signs.

DIN 67 510 Part 1: 2009 - Phosphorescent pigments and products - measurement and identification by the manufacturer.

DIN 67 510 Part 4: 2008 - Phosphorescent pigments and products - luminance requirements for photoluminescent materials.

BS ISO 3864-1:2011 - Graphical symbols - Safety colours and safety signs - Part 1: Design principles for safety signs and safety markings.

BS ISO 3864-3:2012 - Graphical symbols - Safety colours and safety signs - Part 3: Design principles for graphical symbols for use in safety signs.

BS ISO 3864-4:2011 - Graphical symbols - Safety colours and safety signs - Part 4: Colorimetric and photometric properties of safety sign materials.

BS 5499-10:2014: Safety signs, including fire safety signs - Guidance for the selection and use of safety signs and fire safety notices.

BS EN ISO 7010:2020: Graphical symbols - Safety colours and safety signs - Registered safety signs.

UNIQUE PRODUCT CODES

Each JALITE sign has a unique code number, after the sign code you will see the size code as shown in the example below.

Code example

SIGN TYPES

VIEWING DISTANCE

The expected viewing distance of a safety sign is described according to the Z factor. The Z factor is the ratio of the viewing distance divided by the sign height (graphical symbol height plus geometric shape according to BS EN ISO 7010:2020 image) - Direct line of sight.

Click here for more info.

SAFETY SIGNS COLOURS & SHAPES

The standard BS ISO 3864-1:2011 specifies a system of geometric shapes and safety colours for use with the appropriate graphical symbols to produce safety signs.

Click here for more info.

MATERIAL CODES

The following materials are used to manufacture JALITE products.

*MATERIAL*	*PREFIX*	*SUFFIX*
JALITE AAA photoluminescent rigid PVC	~	R
JALITE AAA photoluminescent Self Adhesive Vinyl	~	V
White rigid PVC	W	R
White exterior rigid PVC	WX	R
Stainless Steel Grained	SS	~
Stainless Steel Brushed	STB	~
Metal Effect	ME	R

CODE SIZE’S FOR SIGNS Note: Please check sign for available sizes.

CODE	SIZE (mm)
A	100 x 100
C	150 x 150
D	150 x 200
DD	200 x 300
E	200 x 200
Q	300 x 300
O	80mm in diameter

JALITE framing solutions are specifically manufactured for JALITE signage, especially escape route signage. Our frames enable Class C+ luminance performance of JALITE signs, whilst protecting the safety signs from damage.

JALITE offer a range of frames for safety signs with options for aluminium frames or plastics depending on the type and size of safety sign.

JALITE frames are robust and an aesthetically pleasant housing for all your safety sign requirements.

For escape route signage specifically, JALITE offer single sided and double-sided options ideal for your application needs.

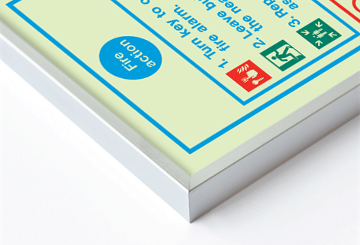

Framing example
