Safety Signs

Emergency Equipment

JALITE photoluminescent emergency equipment safety signs are sited to allow trained personnel to identify the location of life saving equipment, especially during an emergency. This is especially important, where persons on the premises have been injured, harmed, or need to escape using specialised emergency evacuation equipment. For example, where occupants are injured, the designated first aider of the organisation will need to quickly identify the first aid equipment.

Using JALITE photoluminescent emergency safety signs featuring first aid, stretcher, emergency telephone and more, allow this equipment to be identified in all lighting conditions. All JALITE photoluminescent emergency equipment safety signs are designed with graphical symbols that conform to BS EN ISO 7010:2020. These safety signs are also categorised with a green safety colour and square, as specified in BS ISO 3964-1:2011.

Quick overview

Characteristics

BS ISO 17398:2004 - Safety colours and safety signs. Classification performance and durability of signs.

DIN 67 510 Part 1: 2009 - Phosphorescent pigments and products - measurement and identification by the manufacturer.

DIN 67 510 Part 4: 2008 - Phosphorescent pigments and products - luminance requirements for photoluminescent materials.

BS ISO 3864-1:2011 - Graphical symbols - Safety colours and safety signs - Part 1: Design principles for safety signs and safety markings.

BS ISO 3864-3:2012 - Graphical symbols - Safety colours and safety signs - Part 3: Design principles for graphical symbols for use in safety signs.

BS ISO 3864-4:2011 - Graphical symbols - Safety colours and safety signs - Part 4: Colorimetric and photometric properties of safety sign materials.

BS 5499-10:2014: Safety signs, including fire safety signs - Guidance for the selection and use of safety signs and fire safety notices.

BS EN ISO 7010:2020: Graphical symbols - Safety colours and safety signs - Registered safety signs.

UNIQUE PRODUCT CODES

Each JALITE sign has a unique code number, after the sign code you will see the size code as shown in the example below.

Code example



SIGN TYPES

JALITE offer a range of sign types, single sided, panoramic signs, double-sided wall mounted signs and double-sided hanging signs.

Click here for more info.



VIEWING DISTANCE

The expected viewing distance of a safety sign is described according to the Z factor. The Z factor is the ratio of the viewing distance divided by the sign height (graphical symbol height plus geometric shape according to BS EN ISO 7010:2020 image) - Direct line of sight.

Click here for more info.



SAFETY SIGNS COLOURS & SHAPES

The standard BS ISO 3864-1:2011 specifies a system of geometric shapes and safety colours for use with the appropriate graphical symbols to produce safety signs.

Click here for more info.

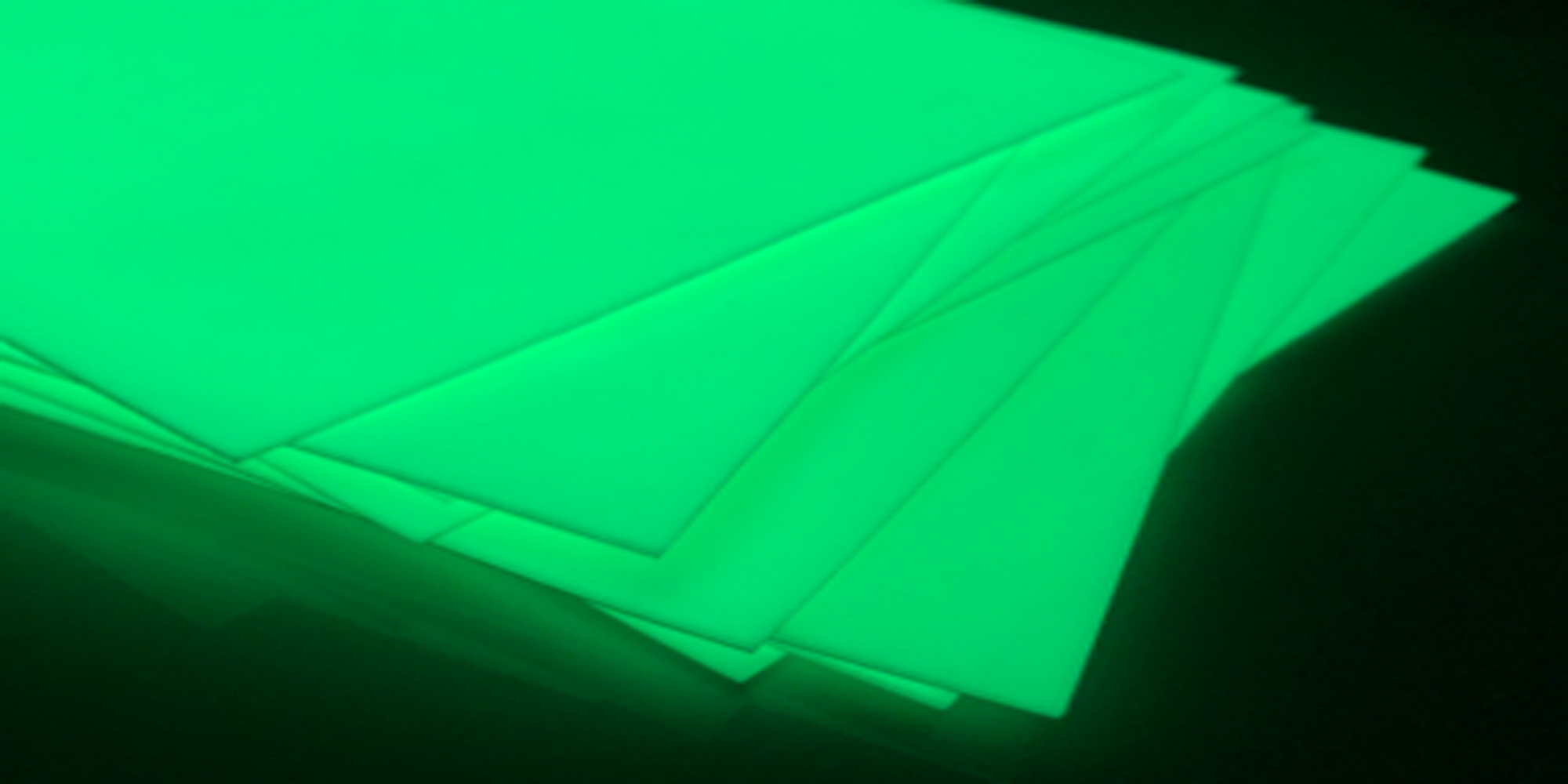

MATERIAL CODES

The following materials are used to manufacture JALITE products.

MATERIAL

PREFIX

SUFFIX

JALITE AAA
photoluminescent rigid PVC

~

R

JALITE AAA photoluminescent vinyl

~

V

White rigid PVC

W

R

CODE SIZE’S FOR SIGNS Note: Please check sign for available sizes.

CODE

SIZE (mm)

C

150 x 150

D

150 x 200

E

200 x 200

FS15

150 x 150

FS20

200 x 200

G

150 x 300

K

150 x 400

M

80 x 200

P

75 x 150

PT

100 x 300

P15

150 x 150

P20

200 x 200

JALITE framing solutions are specifically manufactured for JALITE signage, especially escape route signage. Our frames enable C class luminance performance of JALITE signs, whilst protecting the safety signs from damage.

JALITE offer a range of frames for safety signs with options for aluminium frames or plastics depending on the type and size of safety sign.

JALITE frames are robust and an aesthetically pleasant housing for all your safety sign requirements.

For escape route signage specifically, JALITE offer single sided and double-sided options ideal for your signage needs.

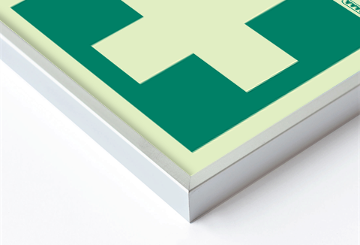

Framing example
